MIDI Settings for BIAS HEAD / BIAS Rack

Desktop

To set the MIDI control settings via desktop, please follow the steps below:

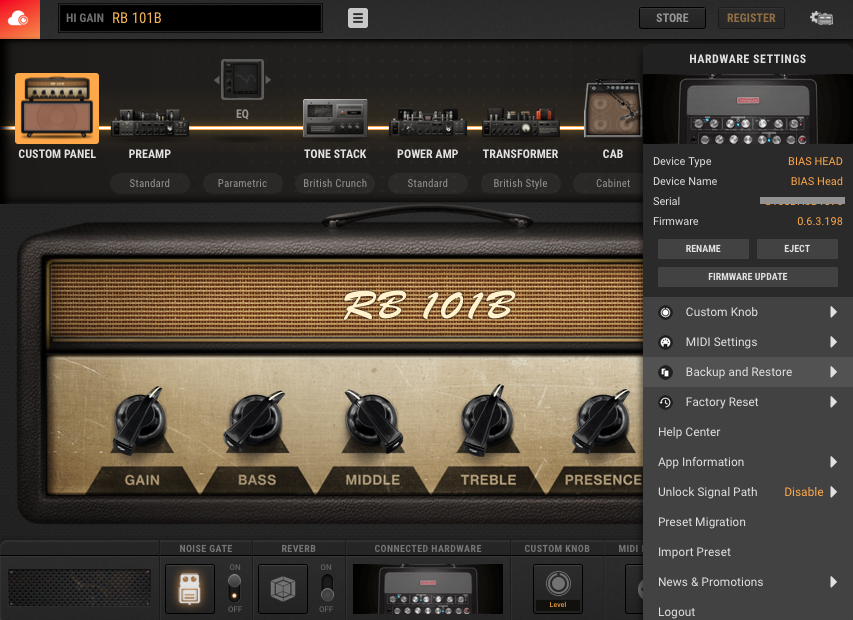

1. First, connect to the BIAS Head/BIAS Rack via the supplied USB cable and access the settings menu by clicking the settings icon in the top right corner, then select MIDI Settings.

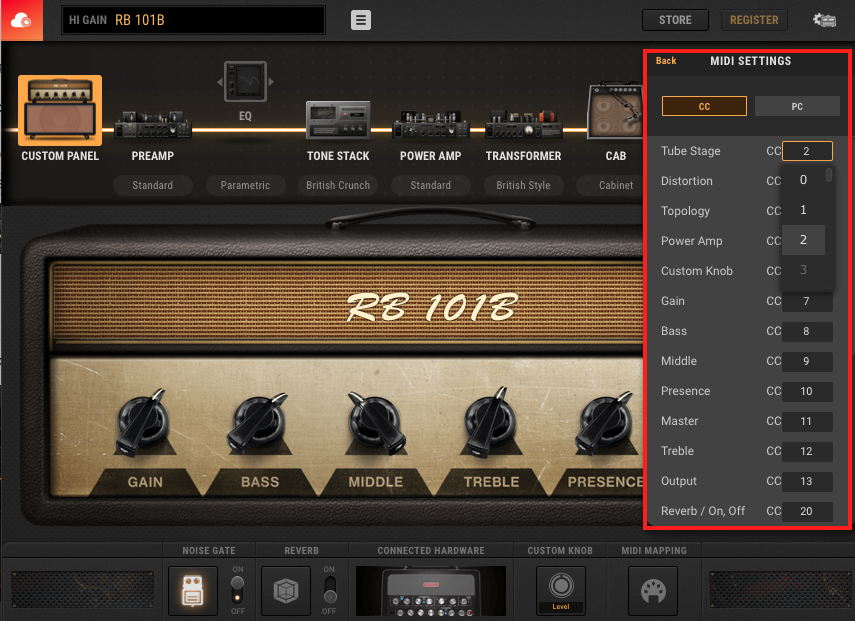

2. To Change the CC messages, click on the parameter you’d like to change and choose the CC number from the scroll list between values 1-127.

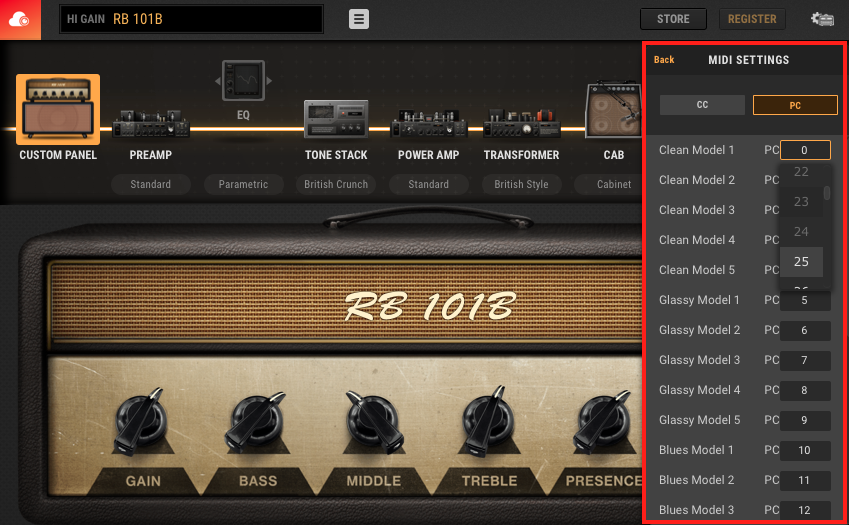

3. The Program Change settings can be found under the right hand sub heading. Simply select the parameter you want to change, and select from the scroll bar again.





Mobile

To set the MIDI control settings via a mobile device, please follow the steps below:

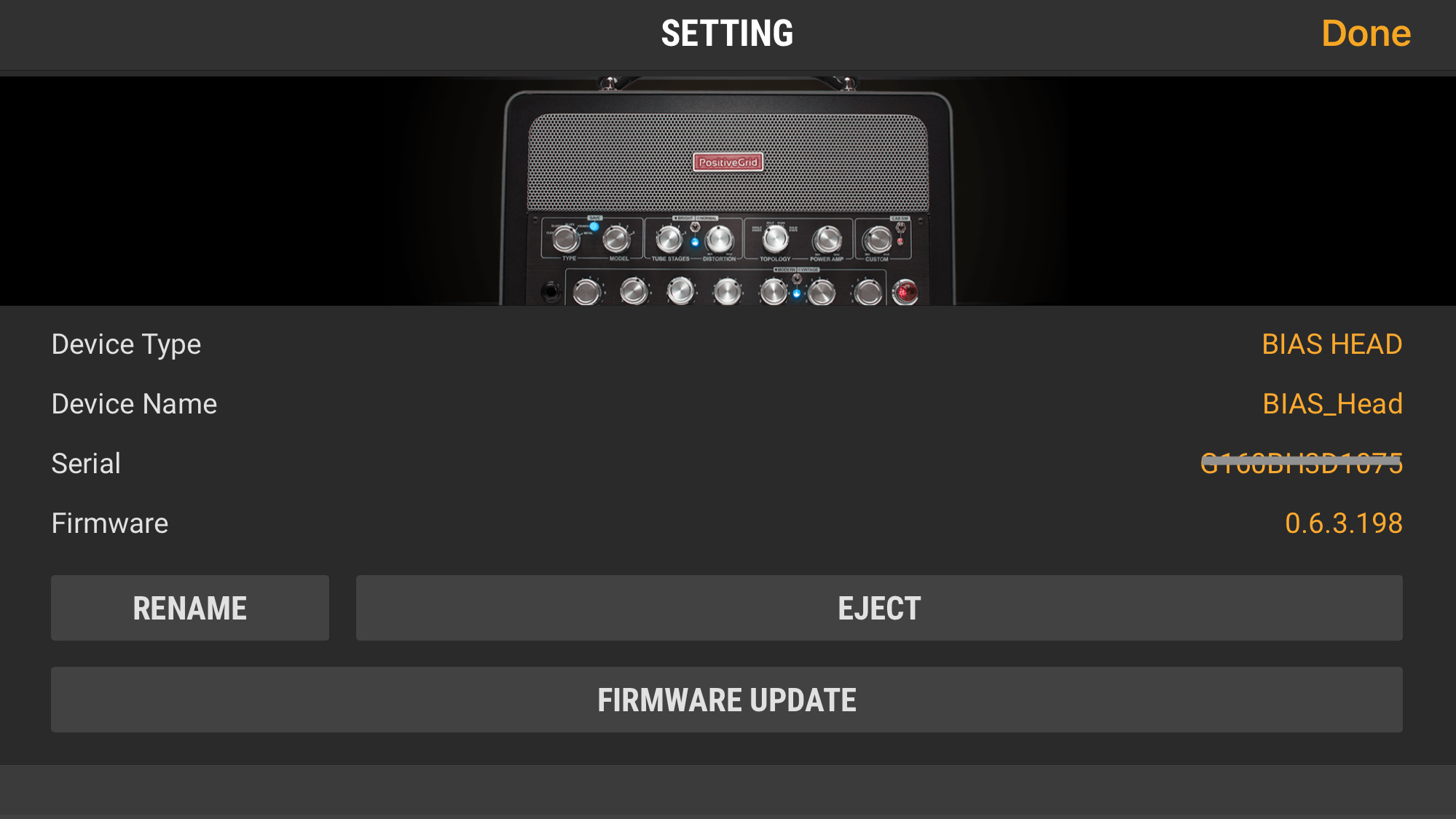

1. First, connect to your mobile device via Bluetooth, then access the settings menu by tapping the settings icon in the top right corner.


2. Tap on MIDI Settings.

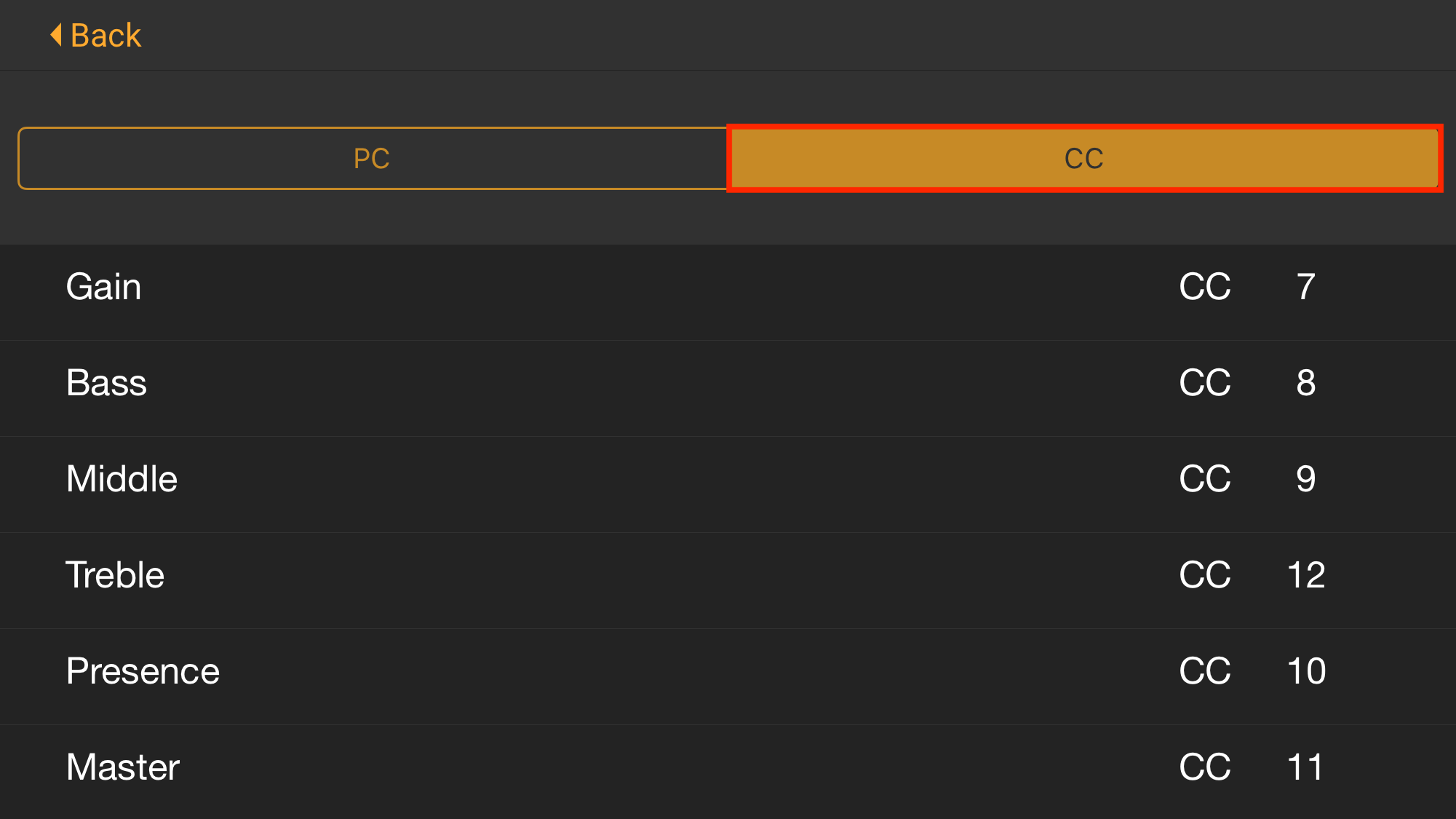

3. Then adjust the settings to your own preferences between 1-127 CC. Once finished, simply tap Done.  You will now see your settings saved for the MIDI CC messages.

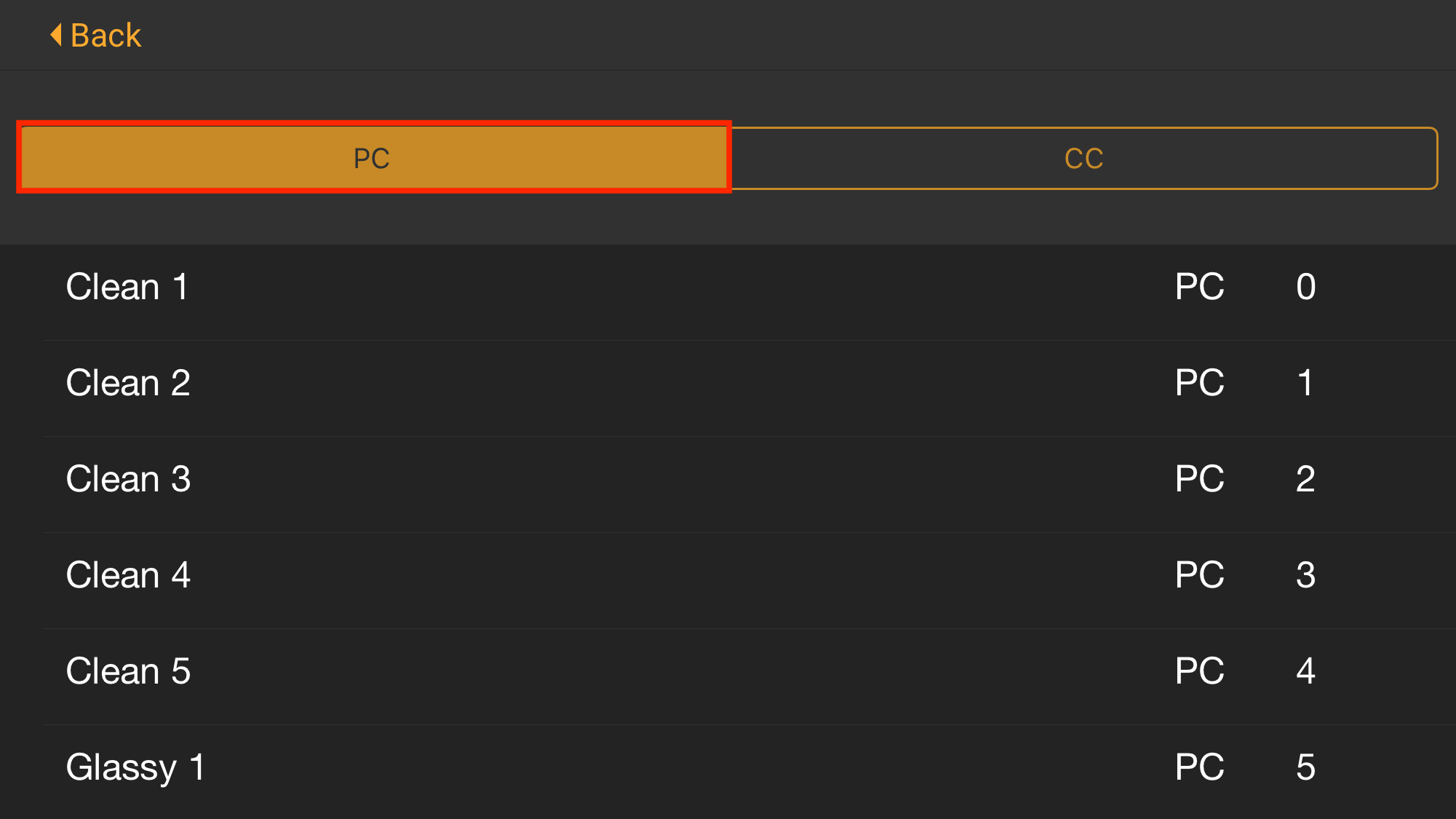

4. The Program Change settings can be found on the right hand side. Tap the parameter you want to change, and select from the scroll bar again.





PC MIDI CHART



Type

Model

Prog. Number

Channel

Clean

1, 2, 3, 4, 5

0, 1, 2, 3, 4

Channel 2

Glassy

1, 2, 3, 4, 5

5, 6, 7, 8, 9

Channel 2

Blues

1, 2, 3, 4, 5

10, 11, 12, 13, 14

Channel 2

Crunch

1, 2, 3, 4, 5

15, 16, 17, 18, 19

Channel 2

Metal

1, 2, 3, 4, 5

20, 21, 22, 23 ,24

Channel 2
