Install and charge Spark Battery in Spark EDGE

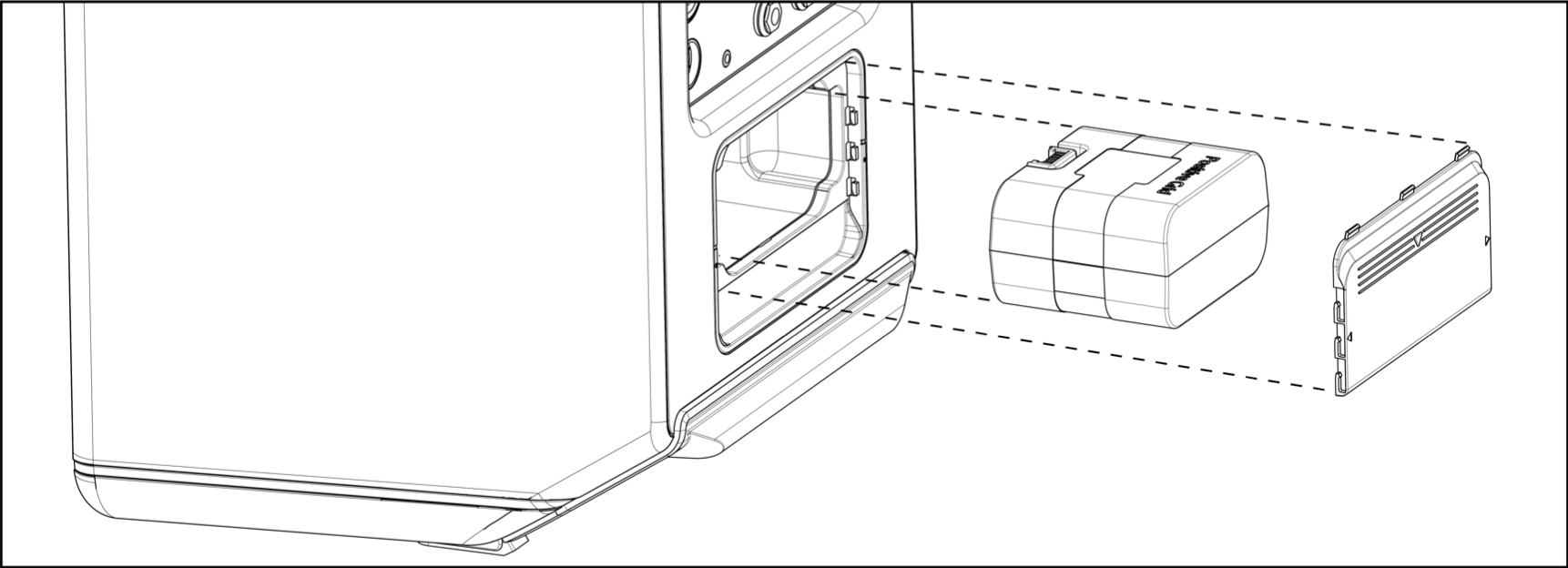

1. 1. Make sure Spark EDGE is off and unplug the power cord.


   2. Open the battery cover on the back and lift it up.


   3. Insert Spark Battery with the sticker facing the bottom.



   4. Put back the cover.


   5. You can now turn on Spark EDGE using battery power.

Charge the Spark Battery

The Spark Battery does not come with a separate charger.

To charge the Spark Battery, simply install it in the Spark EDGE and connect the power supply to the amp. The battery will charge while the amp is plugged in.

Battery Indicator

Indicates battery status. With Spark Battery loaded:

Solid Green: Powered on / Battery 50% - 100%
Solid Yellow: Powered on / Battery 10% - 50%
Solid Red: Powered on / Battery Under 10%
Flashing Green/Yellow/Red: Charging
