Connect an Expression Pedal to the Spark Control X

Instructions

1. Connect the expression pedal to the Spark Control X with a TRS cable.

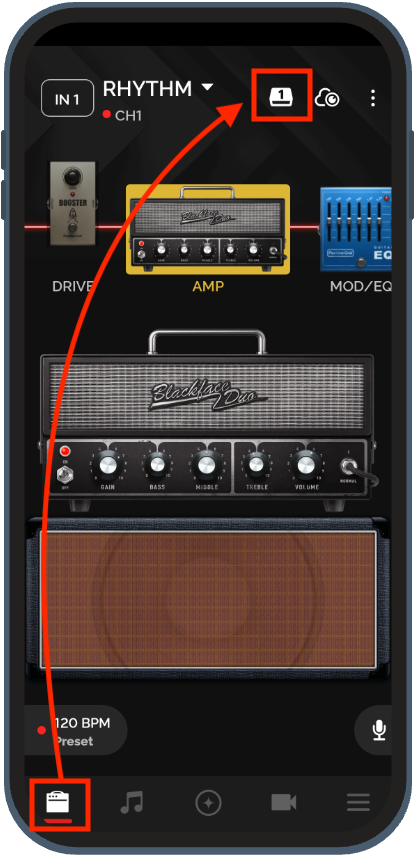

2. Go to the Tone Page, and tap the Control icon next to the ToneCloud to access the Command Assignment Menu.

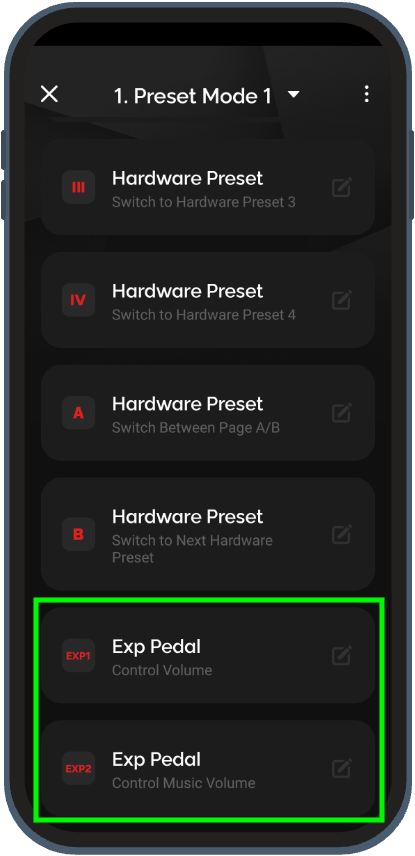

3. Scroll to the bottom and select the expression pedal based on the port you’re connected to.

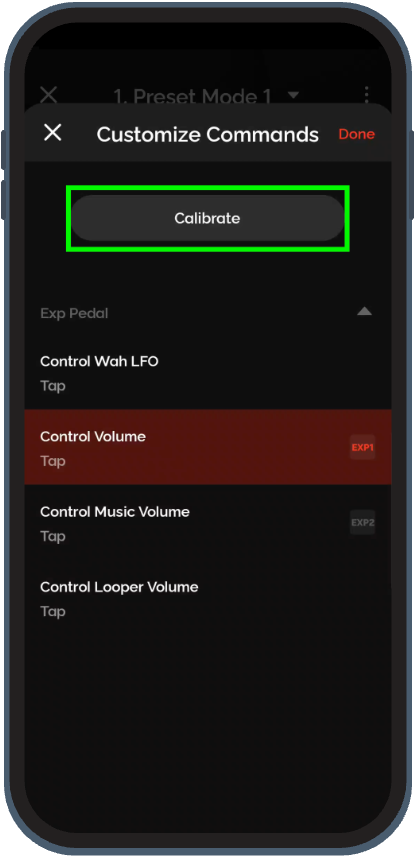

4. Assign a command and tap "Calibrate" to set up the expression pedal.

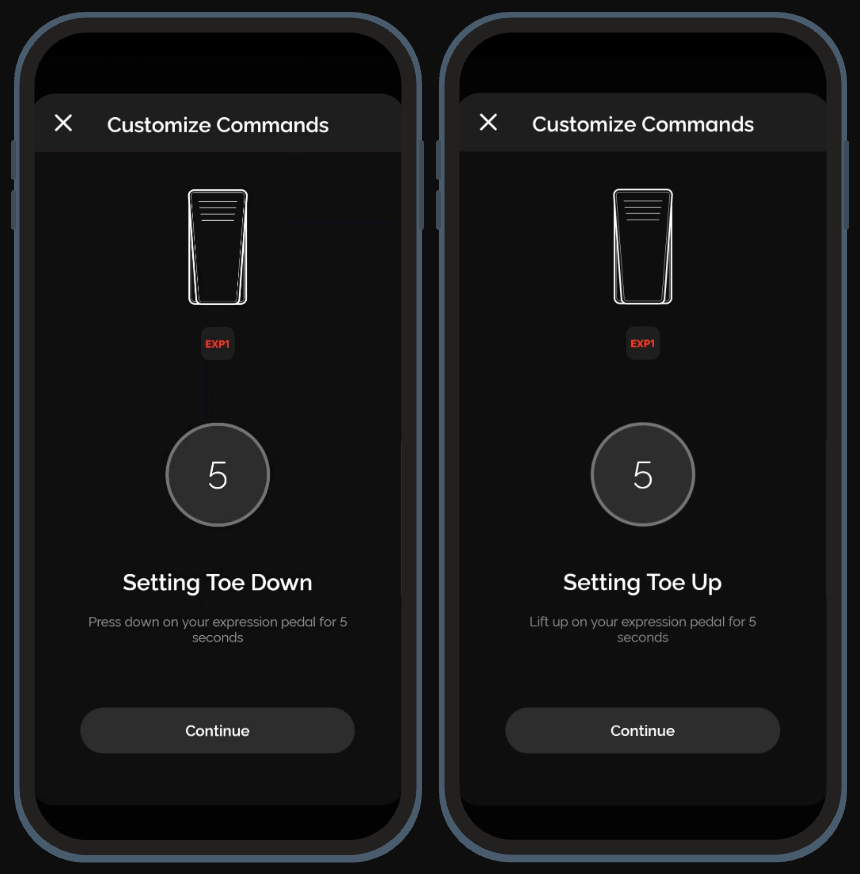

5. Follow the instructions to calibrate the expression pedal.








6. Done! You can now control the Spark amp using the command assigned to the expression pedal with the Spark Control X.

Additional Notes

• Only expression pedals will work with the Spark Control X.
• Wah or Volume pedals will not work when connected to the Spark Control X.
• Not sure what pedal you have or to use? Also check out this article for more information: Why Doesn't the Wah or Volume Pedal Work with Spark Control X?
