Wireless Transmitter (TX) Connection Troubleshooting for Spark NEO

Before you start

Before pairing, ensure that both:

• The Spark app is updated to the latest version.
• The firmware on the Spark NEO is up to date.

For update details, check:

• Spark Amp Editor App Update History / Release Notes (iOS)
• Spark Amp Editor App Update History / Release Notes (Android)
• Spark NEO Firmware Release Notes

Pairing Instructions

The built-in wireless receiver (RX) in the Spark NEO Headphones automatically connects to the Spark NEO Wireless Transmitter (TX) when powered on.

If the TX does not pair with the Spark NEO Headphones, follow these steps:

Step 1: Check for Interference

• Ensure no cable is plugged into the Spark NEO Headphones, as this automatically disables RX (wireless mode).



Step 2: Reset the TX (Transmitter)

1. Power on both the Spark NEO Headphones and TX.
2. Locate the pinhole reset button on the TX.
3. Use a pin to press and hold the button to manually shut down the TX.

   (C) Pin-Hole Reset Button



Step 3: Restart TX and Enter Pairing Mode

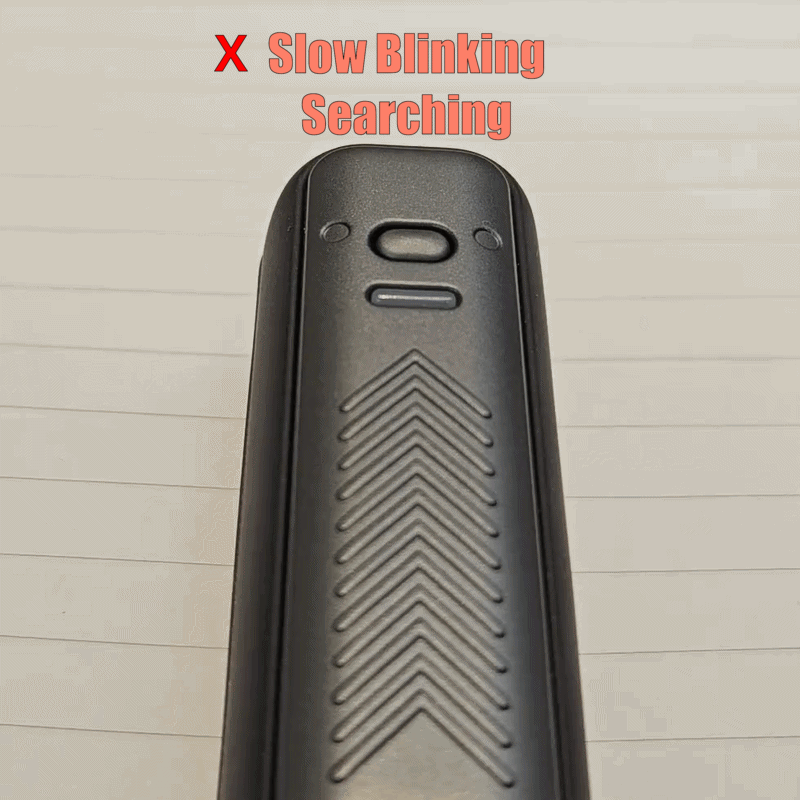

1. Turn the TX back on.

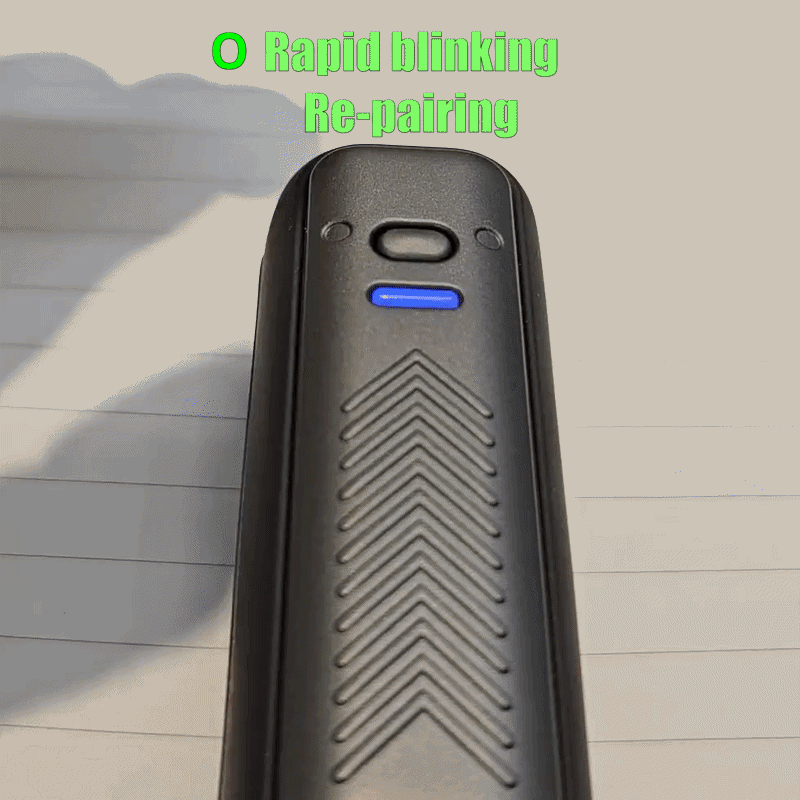

2. Double-tap the TX button—it will start flashing blue rapidly, indicating pairing mode.




Step 4: Enter Pairing Mode on the Headphones (RX)

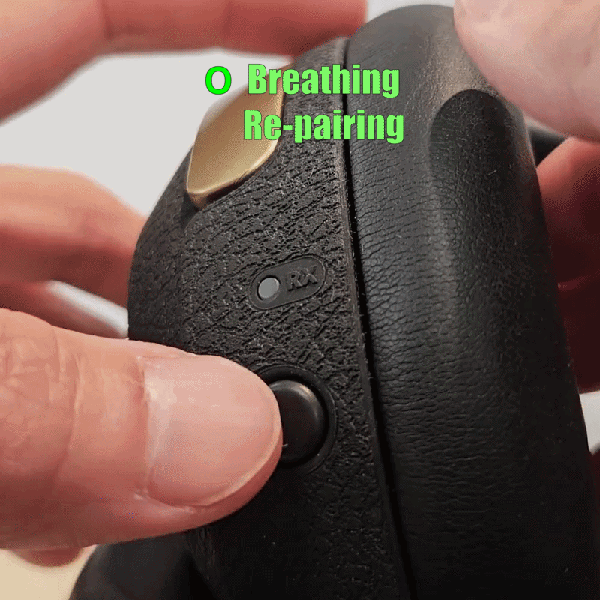

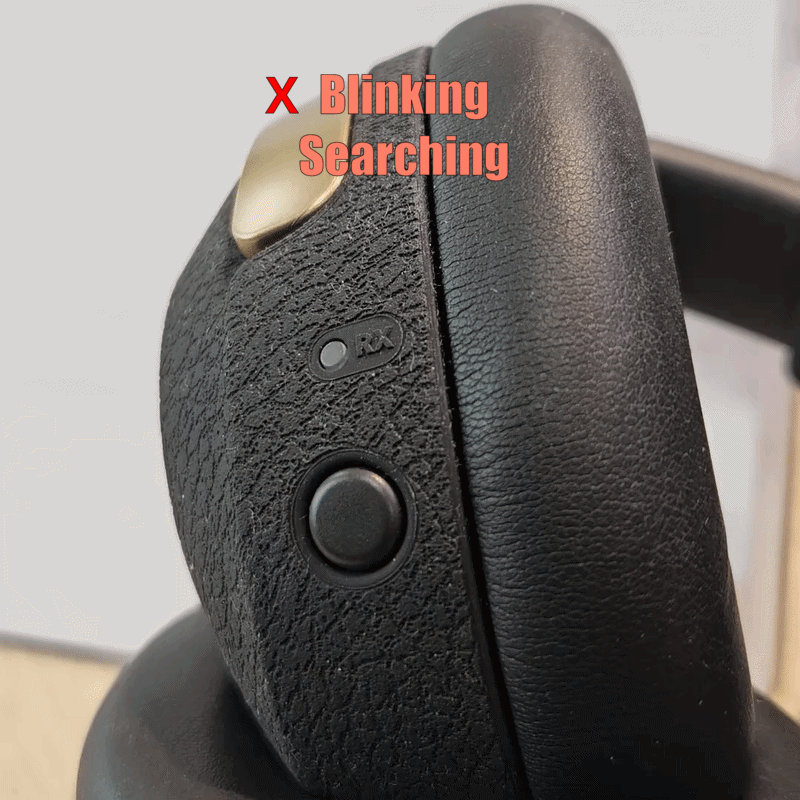

1. Locate the RX LED on the right side of the Spark NEO Headphones.
2. Double-tap the button under the RX LED—the LED will start breathing blue, indicating it is in pairing mode.




Step 5: Confirm Successful Pairing

• Once paired successfully:
  • RX LED (headphones) → Solid blue
  • TX LED (transmitter) → Solid green
