USB Recording

← Back to Spark PEDAL User Guide

For Windows users, please download and install the driver for Spark PEDAL HERE.

Overview

No external audio interface needed - Spark PEDAL's built-in USB audio includes the full signal chain (amp and effects), functioning as a 44.1 kHz / 24-bit audio interface.

Spec Value
Sample Rate 44.1 kHz
Bit Depth 24-bit
Channels 1 In × 2 Out
Important Notes
  • Simultaneous charging and audio: The USB-C port supports charging and audio interface use at the same time.
  • Wet or dry signal: By default, USB recording captures the fully processed (wet) signal. To record a dry signal, bypass all pedals and the amp in the Spark app.

Setup Steps

  1. Connect USB-C cable
    Use the included USB-C to USB-C cable. Connect the rear-panel USB-C port to your computer or tablet.
  2. Turn on Spark PEDAL
  3. Select audio device

    macOS:
    System Preferences → Sound → Output/Input
    Select "Spark PEDAL USB Audio"

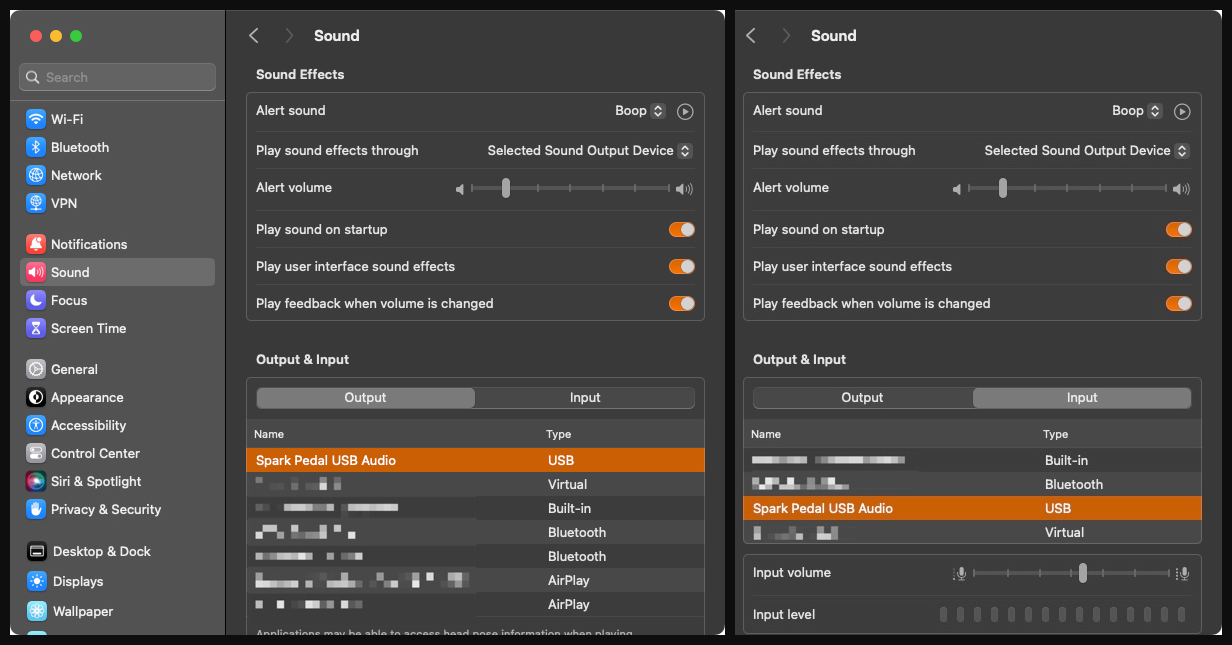

    macOS Sound settings - Spark PEDAL USB Audio selected in Output and Input

    Windows:
    Settings → System → Sound
    Select "Spark PEDAL USB Audio"
  4. Configure your DAW
    • Set input device to "Spark PEDAL USB Audio"
    • Set output device to "Spark PEDAL USB Audio" (for playback through Spark PEDAL)
    • Create an audio track and arm for recording
