Having trouble pairing the Spark NEO Wireless Transmitter (TX) with your Spark NEO Headphones? This guide walks you through the re-pairing steps.
Before You Begin
- Update the Spark app to the latest version.
- Update the Spark NEO firmware.
- Make sure both devices have sufficient battery.
Tutorial Video
Re-Pairing Steps
Step 1: Remove Any Connected Cable
Step 2: Reset the TX
- Power on both the headphones and TX.
- Find the pinhole reset button on the TX.
- Use a pin to press and hold until the TX shuts down.

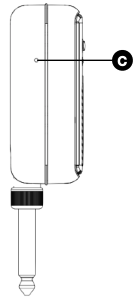

(C) Pin-Hole Reset Button

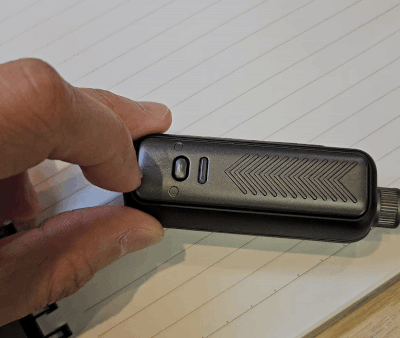

Step 3: Enter Pairing Mode on the TX
- Turn the TX back on.
- Double-tap the TX button.
Step 4: Enter Pairing Mode on the Headphones (RX)
- Find the RX LED on the right side of the headphones.
- Double-tap the button under the RX LED.
Step 5: Wait for Connection
Once both devices are in pairing mode, they will connect automatically within a few seconds.

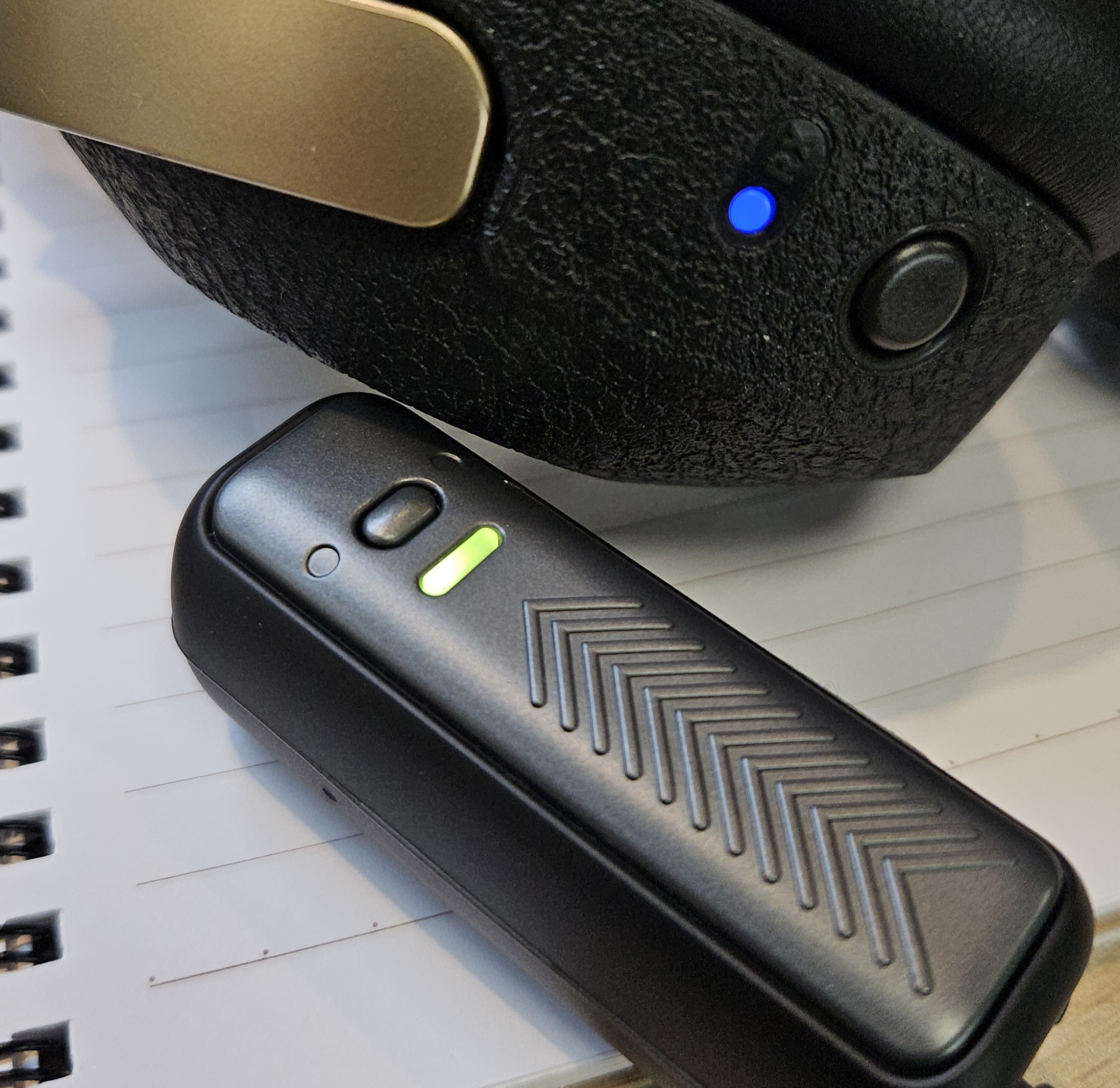

Success:
- Headphones (RX): Solid blue
- Transmitter (TX): Solid green
Still Not Working?
Q: Both devices are blinking but won't connect.
A: Blinking is NOT pairing mode. Make sure you see:
- TX: Rapid flashing (not slow)
- RX: Breathing (fade in/out, not on/off blinking)
Q: How do I tell the difference between LED states?
A: Here's a quick reference:
| State | RX (Headphones) | TX (Transmitter) |
|---|---|---|
| Searching | Blinking blue | Blinking blue (slow) |
| Pairing Mode | Breathing blue | Rapid flashing blue |
| Connected | Solid blue | Solid green |
Q: I followed all the steps, but they still won't pair.
A: Try the following:
- Move closer to reduce wireless interference.
- Charge both devices for at least 30 minutes.
- Reset the TX using the pinhole button and repeat all steps.
Q: The TX LED doesn't respond when I double-tap.
A: The battery may be depleted. Charge the TX for at least 30 minutes, then try again.
