Spark MINI's original foot uses a custom shape, so an exact aftermarket replacement may not be available. A generic round foot may be used as an alternative, provided that it meets the sizing requirements below.
Specs to Match

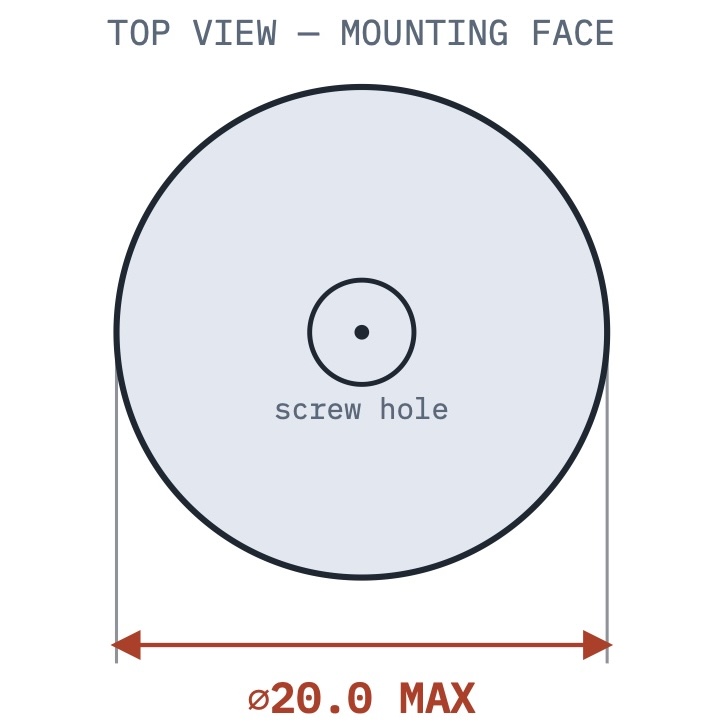

Top view – Choose a replacement foot with an outer diameter of ⌀20 mm or less. A larger foot may overhang the edge of the Spark MINI's bottom shell.

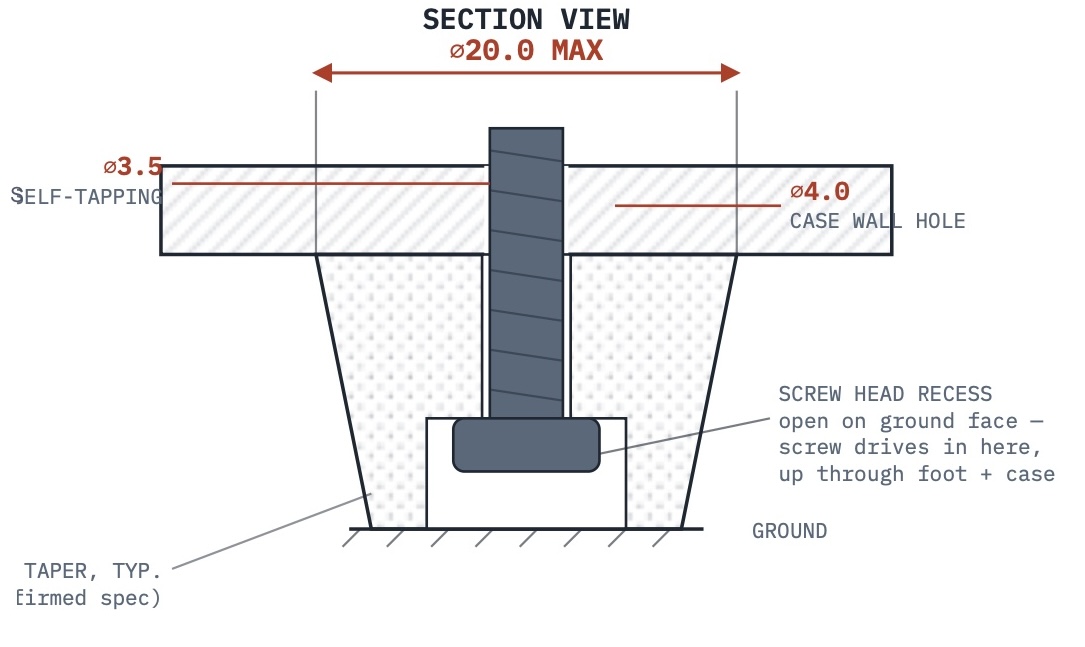

Section view – The replacement foot should have a center bore of at least ⌀3.5 mm to accommodate the mounting screw. We recommend reusing the original screw whenever possible.
Key Points
- Foot outer diameter: ⌀20 mm maximum.
- Screw & foot center bore: Reuse the original ⌀3.5 mm self-tapping screw whenever possible. If it is missing, use a self-tapping screw of the same type and diameter - not a machine screw with a nut. The foot's center bore should be at least ⌀3.5 mm to accommodate the screw.
These specifications are provided as a sizing reference only and do not guarantee compatibility with any specific third-party product.
Still have questions? Contact Positive Grid Support.
