Using Spark CAB 2 as a Stage Monitor

← Back to Spark CAB 2 User Guide

Use the XLR/TRS Combo Inputs to feed any line-level source into Spark CAB 2, turning it into a compact stage monitor for live and rehearsal use.

Connection Steps

  1. Make sure Spark CAB 2 is powered off and the levels are turned down.

  2. Connect the source's main output to the XLR/TRS Combo Input of Spark CAB 2 with a standard XLR or 1/4" cable. Set the Input Selector to the XLR/TRS position.

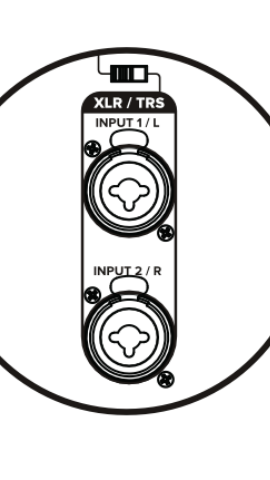

    XLR/TRS Combo Input 1/L and 2/R on Spark CAB 2

    XLR/TRS Combo Input on Spark CAB 2

  3. Turn on the source, then Spark CAB 2. Adjust the volume on Spark CAB 2 as needed.

Do not connect powered outputs or speaker outs to the XLR/TRS inputs.
