General Overview

BIAS FX Desktop offers the best sounding guitar amps and effects for your computer recording system. The following will help explain the layout of amps and effects in order to get you on the road to achieving great tone.

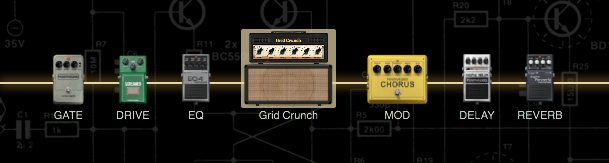

Signal Path

The signal path is kind of like a order for your amp and effects. Your guitar would be first in line with amps/effects following. You can change the order of the amp or effects in the signal path to achieve different sounds.


We recommend using the noise gate in the first slot at all times in order to reduce any unwanted hiss coming from your guitar or pickups.

You can also tap the “single/dual” on top left of signal path to activate dual signal path processing , using 2 amps at a time and pan from L to R channel and adjust their volume to create limitless tone possibilities in mono or stereo!

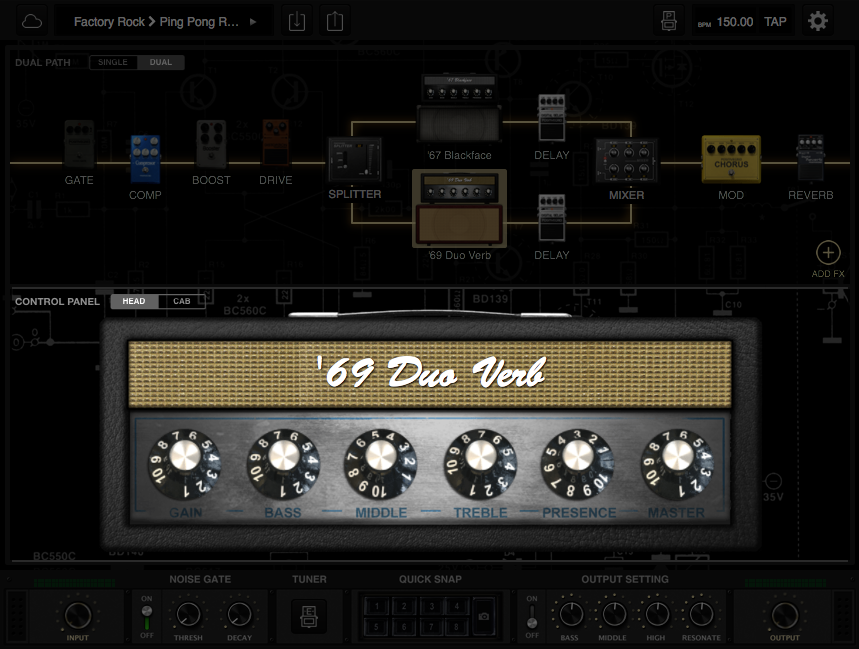

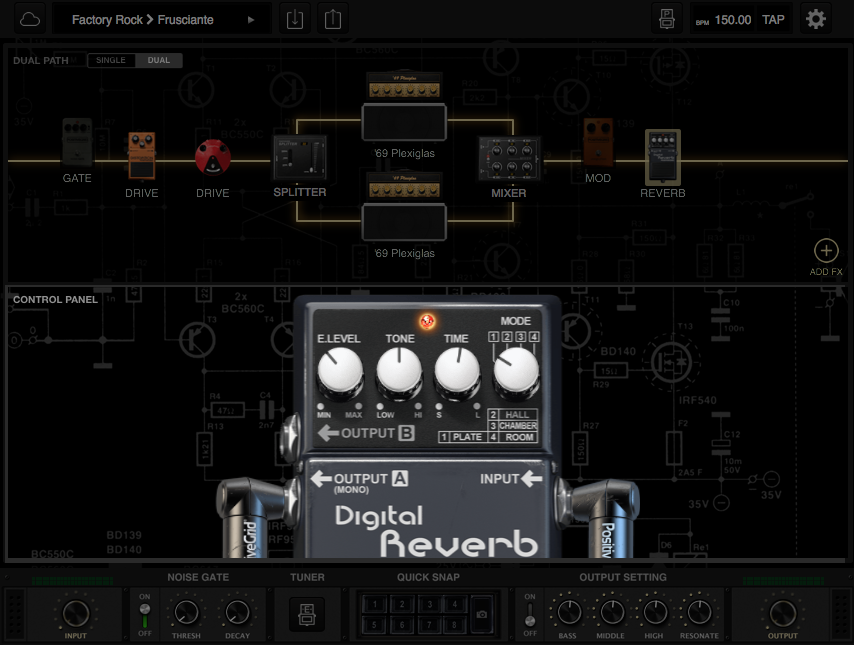

Control Panel

The control panel is the lower-middle part of the screen.

control_panel_amp.png  control_panel.png

When you click on a pedal or an amp on signal path , you can adjust the parameter on the control panel. You can also click on the LED to switch on/off the pedal.

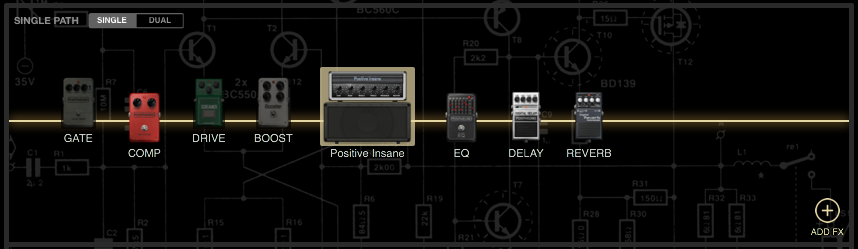

Signal Path Order

The signal path order can be customized to your liking. From there you can tailor your sound by putting amps or effects in different slots.  To do this, simply tap and hold an effect or amp in the chain and drag them to a place in the signal chain.

One example for a distorted guitar sound would be:

Noise Gate > Distortion Pedal > EQ Pedal > Amp > Chorus > Delay > Reverb.


Any of these items can be turned on or off by dragging them up (out of the signal path) or back on by dragging back down (into the chain).

Alternatively, you can tap the red LED light to turn the effect on or off.

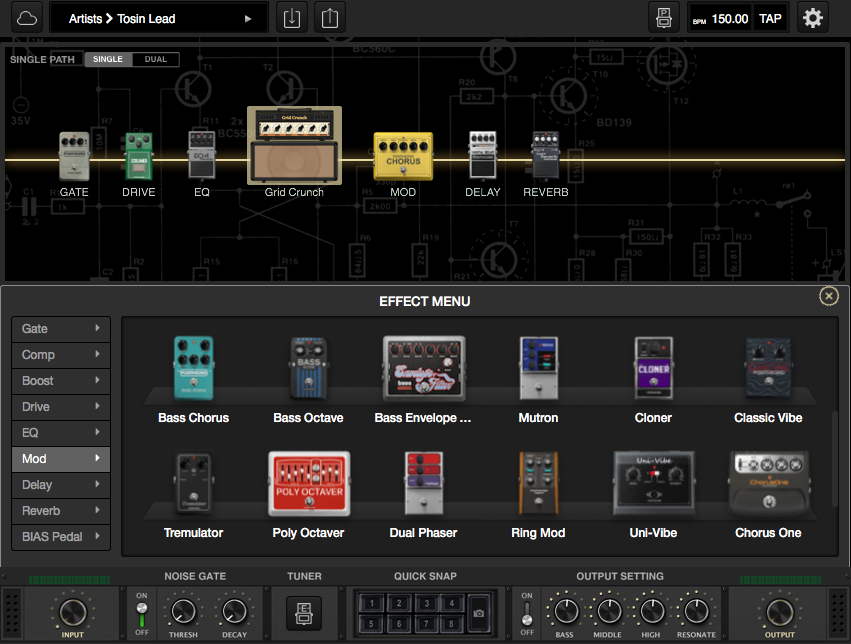

Add / Select Different Amp or FX Models

Adding or Switching to a different amp or effect is a breeze.

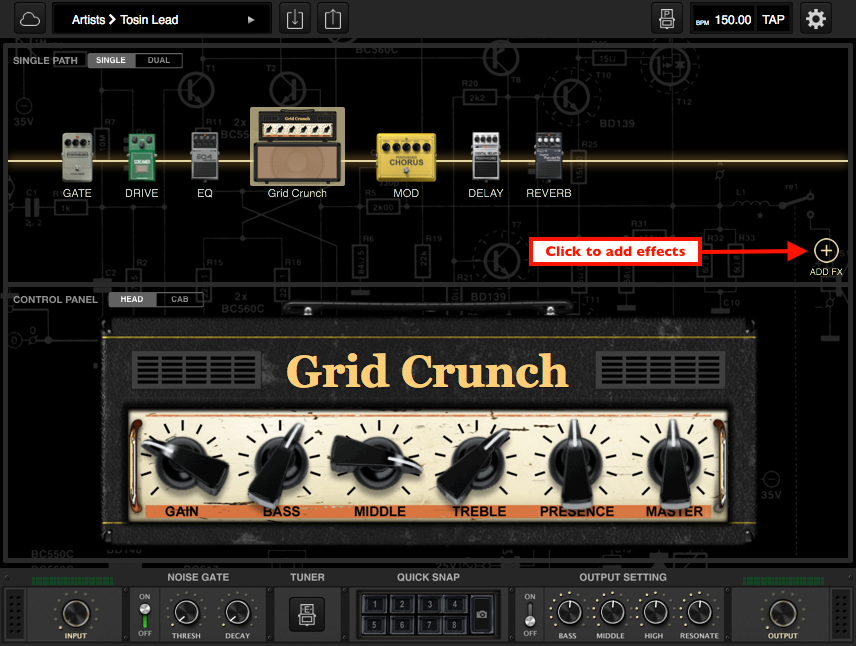

Click on the “+” at the right side and you’ll have a selection menu of effects to choose from. Click on the pedal and it will add to the signal path.


Note: Double click the amp or effect currently in the chain, and you’ll be able to change current amp or effect from the menu this way too.

This will bring up a scrollable picture menu of the various amps or effects available to you.  To choose one, choose a category and the effects available will show up in the menu.


Simply click the amp or effect you wish to use, and you can now drag this effect to the desired position in the chain by clicking and holding the effect .

You can also remove the effect completely by clicking the "X" symbol when you select the effect.



Delay Effect BPM Sync

All the delay effects are equipped with a BPM (Beats Per Minute) sync feature indicated on each pedal by a small BPM switch.  Activating this switch (by clicking it) will sync the delay effect with the current BPM located at the top of your screen in your main DAW.



Pedalboard View

Tap on the icon on top right to toggle from Sigpath view and PedalBoard view





  • In PedalBoard view, you can direct adjust any knob as if you are using a real PedalBoard gig (See Photo 2)
  • You can tap on the led or footswitch to turn on/off the pedal
  • You can also tap on the body of the pedal to zoom in the pedal.
  • You can drag to left for pedalboard extension and drag to right for rackmount view.
