Connect Spark LINK to your instrument and output device

Spark LINK comes with TX (Transmitter) and RX (Receiver), please follow the instructions below to connect them to your instrument and output device.



1. Plug your Spark LINK TX into your instrument.

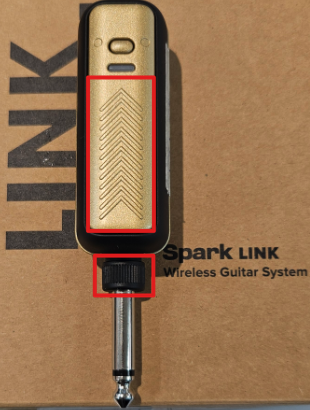

Spark LINK TX (Transmitter) comes with the up arrow symbol (^) and a black ring at the end of the 1/4" jack.




2. Plug your Spark LINK RX into your instrument.

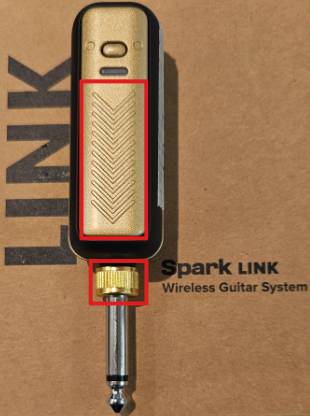

Spark LINK RX (Receiver) comes with the down arrow symbol () and a golden ring at the end of the 1/4" jack.



3. Power up Spark LINK TX then Spark LINK RX.



4. You're ready to play!
